BMC URS 01 ONE
$9,350.00
$10,999.00
Details

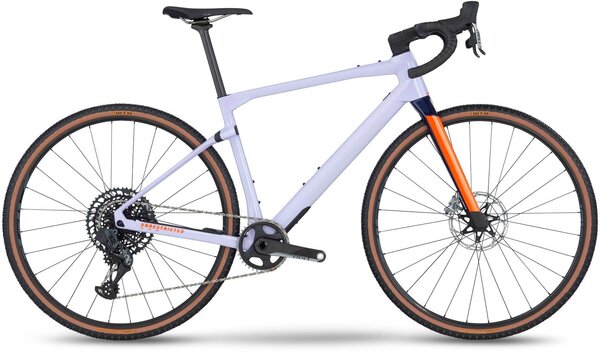

There's nothing grizzled about the sleek looks of our lightest, most integrated URS, a bike with all the performance a dedicated gravel rider needs. Its gravel-conquering Premium Carbon frameset boasts ICS and MTT technologies, plus epic practicality from multiple mounts, Gravel+ geometry and large tire clearance. This ultimate SRAM Red eTap AXS model, with 'mullet' drivetrain and Zipp 101 XPLR wheelset has 40 mm WTB rubber and saddle, Easton bar and an ICS stem with built-in MTT suspension for a no-compromise gravel bike build.

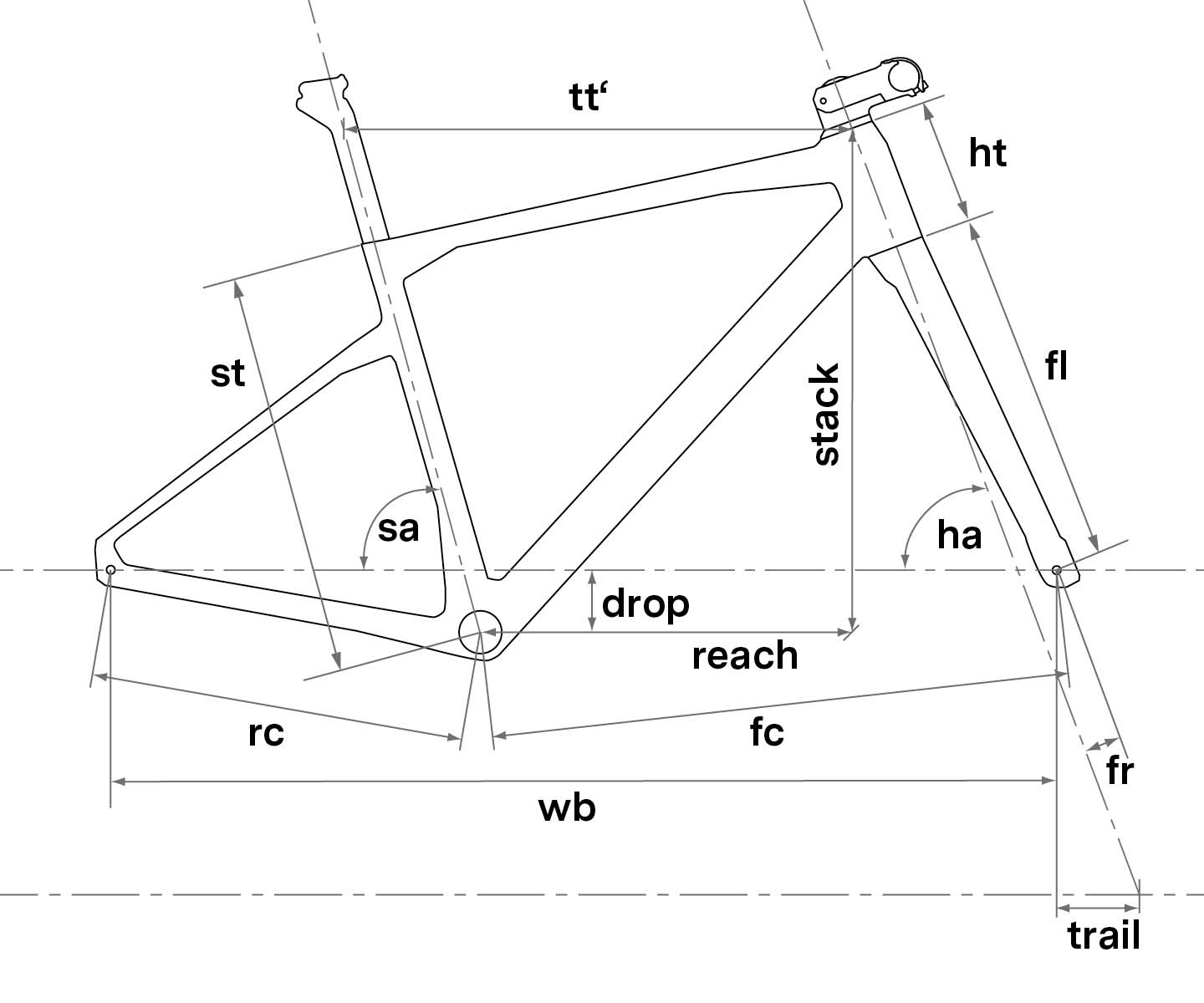

| Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Rider Height CM | <170 | 172-180 | 178-188 | 186-196 |
| Stack MM | 538 | 569 | 603 | 641 |
| Reach MM (reach) | 403 | 415 | 419 | 429 |
| Seat Tube MM (st) | 431 | 459 | 492 | 527 |
| Top Tube MM (tt) | 557 | 578 | 591 | 612 |
| Head Tube MM (ht) | 113 | 146 | 172 | 207 |
| Seat Tube Angle (sa) | 74 | 74 | 74 | 74 |
| Head Angle (ha) | 70 | 70 | 70 | 70 |
| Rear Center MM (rc) | 425 | 425 | 425 | 425 |
| Front Center MM (fc) | 625 | 648 | 665 | 700 |
| Wheelbase MM (wb) | 1041 | 1064 | 1081 | 1105 |
| BB Drop MM (drop) | 69 | 69 | 69 | 69 |
| Fork Length MM (fl) | 407 | 407 | 407 | 407 |
| Fork Rake MM (fr) | 45 | 45 | 45 | 45 |
| Trail MM (trail) | 77 | 77 | 77 | 77 |
| Crank Length MM | 170 | 172.5 | 172.5 | 175 |
| Stem Length MM | 70 | 70 | 80 | 90 |
| Bar Width MM | 420 | 420 | 440 | 440 |
| Bar Drop MM | 120 | 120 | 120 | 120 |
| Bar Reach MM | 80 | 80 | 80 | 80 |
| Standover Height mm | 748 | 778 | 810 | 846 |
| Seatpost Length MM | 330 | 380 | 430 | 430 |
Specs
| Frame | URS 01 Premium Carbon with Micro Travel Technology Tuned Compliance Concept Gravel Gravel+ Geometry ICS Technology Stealth Cable Routing Fender and Rack Mounts PF86 Bottom Bracket Flat Mount Disc 12x142mm Thru-Axle |
|---|---|
| Fork | URS 01 Premium Carbon with Tuned Compliance Concept Gravel, ICS Technology Integrated Brake & Hub Dynamo Routing, Fender Mounts, Flat Mount Disc, 12x100mm Thru-Axle |
| Rims | Zipp 101 XPLR Carbon Tubeless |
| Hubs | Zipp |
| Tires | WTB Raddler - 40mm |
| Chainrings | SRAM RED 1 AXS 38T |
| Shifters | SRAM RED eTap AXS HRD |
| Rear Derailleur | SRAM XX1 EAGLE AXS |
| Cassette/Freewheel | SRAM XG 1295 EAGLE 10-52T |
| Chain | SRAM X01 Eagle |
| Brakes | SRAM RED eTap AXS HRD - Centerline X Rotors (180/160) |
| Handlebars | Easton EC70 AX |
| Stem | ICS MTT x Redshift Suspension Stem - Integrated Cockpit Design |
| Seatpost | URS 01 Premium Carbon D-Shaped Seatpost, 0mm Offset |
| Saddle | WTB SL8 Titanium Medium |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Lavender Haze/Orange / Medium | 07630027885477 | 30002497 | 210000028586 |
