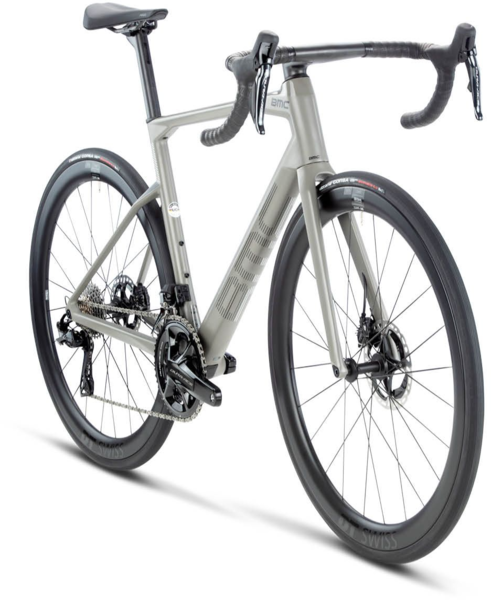

BMC Roadmachine 01 TWO

BMC Roadmachine 01 TWO
  • Color: Rhino Grey
$12,299.00
Color:
Rhino Grey
Size:
56cm
Please select options Unavailable
Order now and pick up in-store for free

Details

The extraordinarily capable Roadmachine 01 combines relentless speed with indulgent comfort, so you can go further, faster. This road bike has a Premium Carbon frame and fork designed using TCC Endurance technology, and features ICS technology, Stealth Cable Routing and a Premium Carbon D-Shape seatpost. The precise Dura-Ace Di2 groupset gives gear ratios for the steepest climbs and with the one-piece ICS Carbon cockpit plus DT Swiss ERC 1100 Dicut wheelset, this is a veritable rocket.

Geometry Chart:
Size475154565861
Rider Height CM <166 166-174 172-180 178-186 184-192 >190
Stack MM 516 541 562 586 610 644
Reach MM (reach) 374 382 386 390 394 398
Seat Tube MM (st) 420 457 500 522 539 573
Top Tube MM (tt) 522 532 546 556 568 583
Head Tube MM (ht) 112 139 156 181 206 242
Seat Tube Angle (sa) 74.2 74.2 74.2 74.2 74.2 74.2
Head Angle (ha) 71.2 71.2 72 72 72 72
Rear Center MM (rc) 410 410 410 410 410 410
Front Center MM (fc) 583 599 597 609 621 635
Wheelbase MM (wb) 982 999 997 1008 1020 1035
BB Drop MM (drop) 71 71 71 71 71 71
Fork Length MM (fl) 375 375 375 375 375 375
Fork Rake MM (fr) 50 50 45 45 45 45
Trail MM (trail) 63 63 63 63 63 63
Crank Length MM 170 170 172.5 172.5 175 175
Stem Length MM 90 100 100 110 110 120
Stem Angle -12.5 -12.5 -12.5 -12.5 -12.5 -12.5
Bar Width MM 400 420 420 420 420 420
Bar Drop MM 127 127 127 127 127 127
Bar Reach MM 67 67 67 67 67 67
Post Offset MM 15 15 15 15 15 15

Specs

Frame Roadmachine 01 Premium Carbon with Tuned Compliance, Concept Endurance, ICS Technology Stealth Cable Routing, PF86 Bottom Bracket, Flat Mount Disc, 12x142mm Thru-Axle
Fork Teammachine SLR Carbon, TCC Race Compliance Level, Internal Cable Routing, Flat Mount Disc, Stealth Dropout Design, 12x100mm Thru-Axle
Rims DT Swiss ERC 1100 Dicut - 45mm
Hubs DT Swiss 180 Straightpull - Ratchet EXP 36 - SINC Ceramic Bearings
Tires Vittoria Corsa N.EXT - 28mm
Chainrings SHIMANO Dura Ace 12spd 50-34T
Shifters SHIMANO Dura Ace Di2 12spd
Rear Derailleur SHIMANO Dura Ace Di2 12spd
Cassette/Freewheel SHIMANO Dura Ace 12spd 11-30T
Chain SHIMANO Dura Ace 12spd
Brakes SHIMANO Dura Ace - RT900 Rotors (160/140)
Handlebars ICS Carbon - One-Piece Full Carbon Cockpit
Stem ICS Carbon - One-Piece Full Carbon Cockpit
Seatpost Roadmachine 01 Premium Carbon D-Shaped Seatpost 15mm Offset
Saddle Fizik Argo Tempo R5 (150mm)

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Rhino Grey / 56cm 07630027884517 30002392 210000028494
